Minivator

minivator


We will return to customer with fruitful service by the best engineering


Shin Han Elevator Co., Ltd. has been the innovative leader of Korean Elevator Industry with a variety of field experience know-how.
We are trying to keep the role by continuous investing safer, customized design, engineering, R&D, manufacturing as well as reliable A/S maintenance.


Small but shining and shimmering elevator, with high quality, is definitely suitable for limited architecture space of Villa, Multi-family house by customized flexible space saving engineering concept.

We provide the tenants with modern design/new technology as well as faster manufacturing/installation lead time.

CAR DESIGN

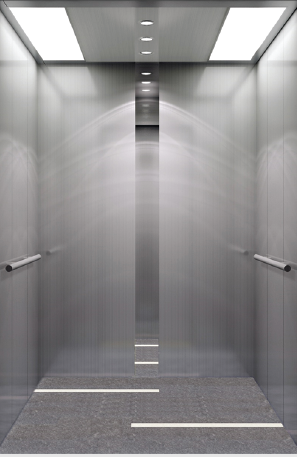

SHE - 01 Standard

Neat style simple design

Energy saving standard type

천정(Celling)
sts mirror(led light)
카벽(Car wall)
STS HAIRLINE
카도어(Car door)
STS HAIRLINE
바닥(Floor)
DECOTILE

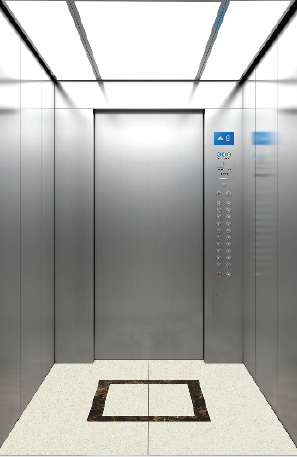

SHE - 02 Optional

Neat style simple design

Energy saving option type

천정(Celling)
sts mirror(led light)
카벽(Car wall)
STS HAIRLINE + STS MIRROR
카도어(Car door)
STS HAIRLINE
바닥(Floor)
DECOTILE

SHE - 03 Optional

Bright style modern design

Energy saving option type

천정(Celling)
sts mirror(led light)
카벽(Car wall)
STS HAIRLINE
카도어(Car door)
STS HAIRLINE
바닥(Floor)
DECOTILE

SHE - 04 Optional

Bright style modern design

Energy saving standard type

천정(Celling)
sts mirror(led light)
카벽(Car wall)
STS HAIRLINE+ STS MIRROR
카도어(Car door)
STS HAIRLINE
바닥(Floor)
DECOTILE

OPTION

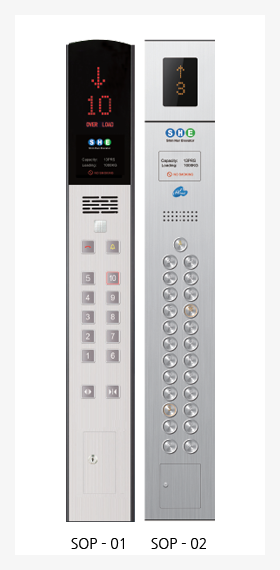

O.P.B | 조작반

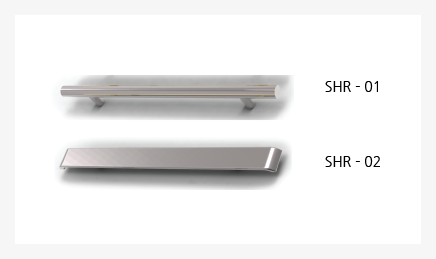

HandRail | 핸드레일
Floor | 카바닥

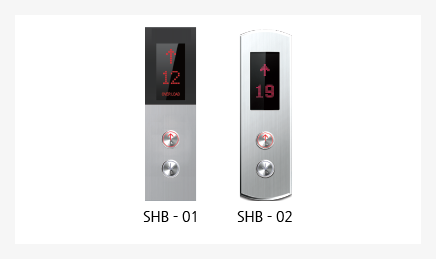

HALL BUTTON | 홀버튼
ETCHING PATTErN | 에칭패턴

MR TYPE

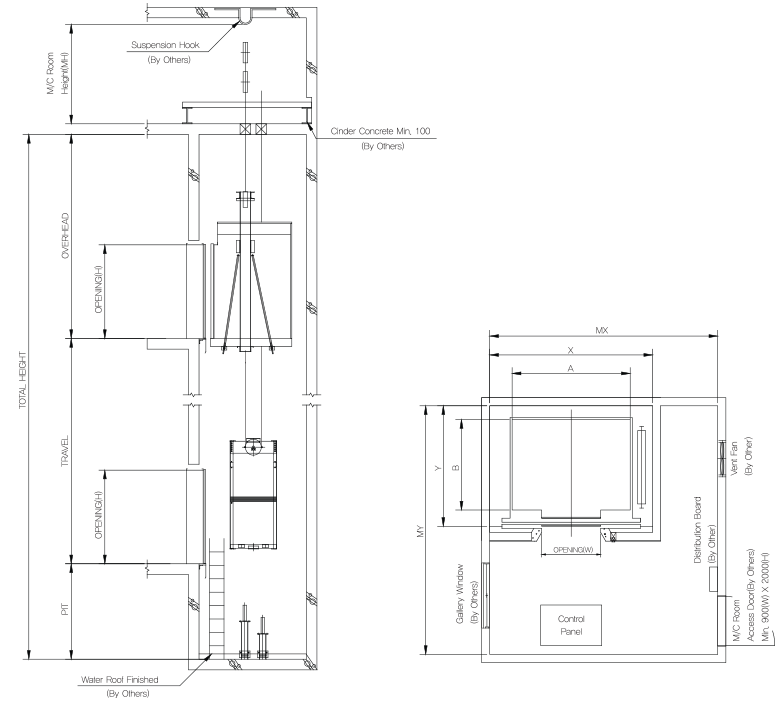

기계실 있는 엘리베이터(MR TYPE) 도면

속도 용량 (Capacity) 출입구 (Opening) 카(Car) 승강로(Hoistway) 승강로(Hoistway)
내부(Internal) 폭(Width) 깊이(Depth) 오버헤드(O.H) 피트(PIT) 폭(Width) 깊이(Depth) 오버헤드(O.H)
인승(Persons) 중량(kg) 용량(kw) OP X H AXB X Y MX MY MH
60 8 550 5.5 800x2100 1200x1150 2100 1650 4100 1400 2700 2450 2500
9 600 5.5 800x2100 1200x1270 2100 1700 4100 1400 2700 2500
10 680 5.5 800x2100 1200x1200 2200 1650 4100 1400 2800 2450
11 750 5.5 800x2100 1400x1300 2200 1750 4100 1400 2800 2550
  • - CH : CH : Car Internal Height 2300mm + Dual Layered Ceiling Height 200mm
  • - Above data based on concrete Hoistway
  • - Handicapped Lift : More than 1600(w) * 1350(d)mm Car size & 900(w)mm Door opening (from 15 persons) based on New Building Permit(After Nov.24,2009)

MRL TYPE

unit: mm

속도 Speed (m/min) 용량 (Capacity) 출입구 (Opening) 카(Car) 승강로(Hoistway)
내부(Internal) 폭(Width) 깊이(Depth) 오버헤드(O.H) 피트(PIT)
인승(Persons) 중량(kg) 용량(kw) OP X P A X B X Y
15 3 250 0.62 700X2100 1100X900 1900 1450 3800 1000
3 250 0.62 700X2100 1100X900 1900 1450 3800 1000
3 250 0.62 700X2100 1100X900 1900 1450 3800 1000
60 8 550 4 800X2100 1400X1000 2250 1900 4100 1000
9 600 4 800X2100 1400X1080 2250 1900 4100 1000
10 680 5.5 800X2100 1400X1200 2250 1950 4100 1000
11 750 5.5 800X2100 1400X1300 2250 2000 4100 1000
  • - CH : Car Internal Height 2300mm + Dual Layered Ceiling Height 200mm
  • - Above data based on concrete Hoistway
  • - Handicapped Lift : More than 1600(w) * 1350(d)mm Car size & 900(w)mm Door opening (from 15 persons) based on New Building Permit(After Nov.24,2009)
  • - Above data based on underslung type
  • - Small capacity less than 6 persons(CH : 2300mm, Direct Ceiling)
  • - Max. Travel : 12m
