Customer’s inconvenience caused from often breakdown & repairing cost increase(Control panel rotary encoder & relay electric contactor malfunction or deterioration)
World best technology brings
with Shin Han Elevator Co., Ltd.’s pride.
After elevator operated 15~20 years, it’s possible the ratio of error or malfunction increased sharply even though maintenance done periodically, which means the elevator’s life cycle suspected.
When it comes this period, maintenance cost increased sharply. It’s time to consider it’s necessary to do replacing or remodeling works by precise Diagnosis
Division | Assembly | Part | Life expectancy | Replacement possiblility | |
---|---|---|---|---|---|
Machine room | Motor | Motor | Cage induction | 10~15 | O |
Winding induction | 20~30 | ||||
Bearing | 10~15 | ||||
Traction machine | Over speed Governor | 20~25 | O | ||
Pulley | 8~12 | ||||
Break | Break Ass’y | 20~25 | O | ||
Lining | 5~8 | ||||
Control panel | 10~15 | O | |||
Governor | 10~15 | O | |||
Machine beam | 20~25 | X | |||
Car cage | Door | Hanger roller | 5~10 | O | |
Operator | 15~20 | ||||

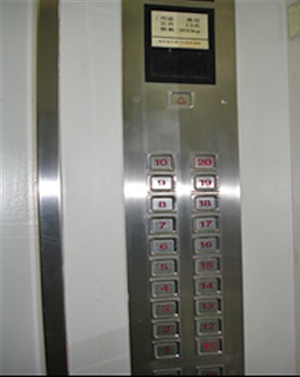

COP | 5~10 | O | |||
Panel(wall) | 5~10 | O | |||
Hoistway | Main rope | 7~10 | O | ||
Travelling cable | 10~15 | O | |||
Guiderail | 10~15 | O | |||
Buffer | 10~15 | O | |||
Counter weight | 10~15 | O | |||
Rope | 5~8 | O | |||
Pit switch | 5~10 | O | |||
Limit switch | 5~10 | O | |||
Door safety | 5~10 | O | |||
Oiler, Cam, Shoe | 5~10 | O | |||
Car top beam | 10~15 | O | |||
Entrance | Button | 5~10 | O | ||
Door | 10~15 | O | |||
Door jamb | 10~15 | O | |||
Door sill | 5~10 | O | |||
Hall button | 5~10 | O | |||
HPI | 5~10 | O | |||
Landing door operator | 5~10 | O | |||
Car door operator | 5~10 | O | |||
Floor Indicator | 10~15 | O |
Customer’s inconvenience caused from often breakdown & repairing cost increase(Control panel rotary encoder & relay electric contactor malfunction or deterioration)
Replaced with brand new distributed interter type EL-LUX2 controller.
M'while, by retaining controller box, cost saving and wok lead time shortened
Cabin interior deterioration, contamination, deformation & corrosion
Car ceiling, flooring & panel replaced with brand new ones
Based on 1 unit of elevator, manufacturing lead time is 2 weeks after spec. confirmed and dismantling/installation lead time take also 2 weeks.
※ Subject to change following jobsite situation
