Escalator

Shin Han Escalator series has multiple advantages such as firm and durable,
safe and reliable, peaceful running, low carton environment protection and etc.


Frequency conversation of low speed
Escalator operates steadily with frequency conversation, if there is no passenger in designed period, it would slow the speed, and the energy saving efficiency above 60%.
Frequency conversation of self-starting
If there is no passenger at the escalator, then it would slow down the speed for certain time and then stop, when entrance light eyes detect passengers coming then the escalator restarts, the energy saving efficiency above 70%.
Intelligent variable speed system
Control system automatic judges escalator load situation through sensor to shift speed timely, reduces the energy consumption greatly and offers the most comfortable travelling experience for passengers. The energy saving efficiency above 80%.

ESCALATOR DESIGN

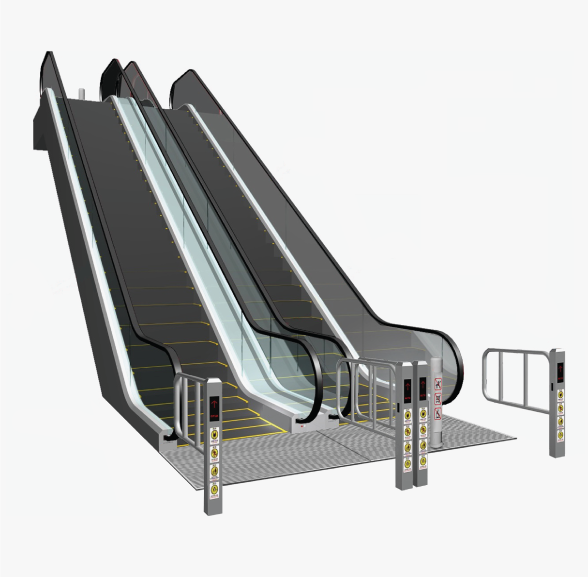

1. 옥내형(INDOOR TYPE)
스텝(Step) DIE CASTING ALUMINUM
난간(Baseboard) TEMPERED GLASS
데크(Deck) STS HAIRLINE
플로어 플레이트(Floor Plate) STAINLESS STEEL
멀티 포스트(Multi Post) STS

옥내형(INDOOR TYPE)

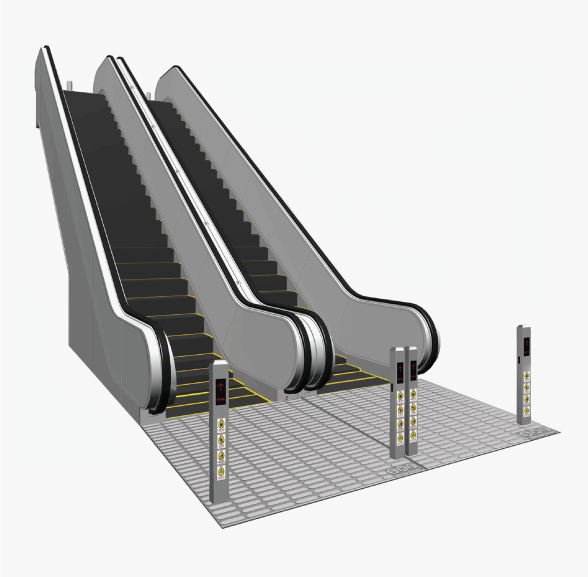

2. 옥외형(OUTDOOR TYPE)
스텝(Step) DIE CASTING ALUMINUM
난간(Baseboard) STS HAIRLINE
데크(Deck) STS HAIRLINE
플로어 플레이트(Floor Plate) STAINLESS STEEL
멀티 포스트(Multi Post) STS

옥외형(OUTDOOR TYPE)

OPTION

Handrail Color 핸드레인 색상

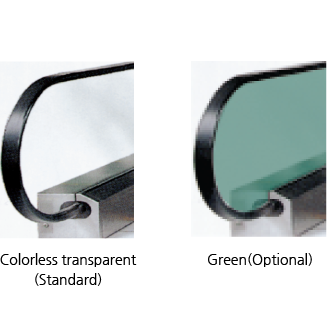

Baseboard Color 난간 색상
Multi Post 멀티포스트

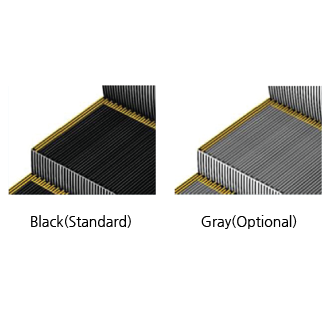

Step Color 스텝 색상

Escalator


모터용량
Motor capacity
(KW) 		층고 (Traveling height)
스텝폭 (Step width 1000) 		KW 층고 (Traveling height)
스텝폭 (Step width 1000) 		KW 층고 (Traveling height)
스텝폭 (Step width 1000) 		KW
1000-3300 5.5 1000-3500 5.5 1000-3700 5.5
3400-4500 7.5 3600-4700 7.5 3800-4900 7.5
4600-4900 8 4800-5100 8 5000-5200 8
5000-5900 11 5200-5900 11 5300-5900 11
스텝폭 (Step width) A B C D E F
1000 1000 1158 1238 1600 1660 2310
800 800 958 1038 1400 1460 2110
600 600 758 838 1200 1260 1910
모델 (Model) 층고 (Traveling height) Net weight KN Bearing capacity 기기치수 (Transporation dimension)
R1 KN R2 KN h l
FML(600)-30
(3600Person/h)
Speed : 0.5m/s 		3000 57 46 41 2750 10900
3500 60 49 44 2780 11890
4000 64 52 47 2810 12880
4500 68 56 50 2830 13870
5000 71 59 53 2840 14860
5500 75 62 56 2860 15860
6000 79 65 59 2870 16860
FML(800)-30
(4800Person/h)
Speed : 0.5m/s 		3000 59 52 47 2750 10900
3500 63 56 50 2780 11890
4000 67 60 54 2810 12880
4500 71 64 57 2830 13870
5000 74 68 60 2840 14860
5500 82 74 66 2860 15860
6000 86 78 69 2870 16860
FML(1000)-30
(6000Person/h)
Speed : 0.5m/s 		3000 63 59 53 2750 10900
3500 67 64 57 2780 11890
4000 71 68 61 2810 12880
4500 75 73 65 2830 13870
5000 83 79 71 2840 14860
5500 87 84 75 2860 15860
6000 92 88 79 2870 16860

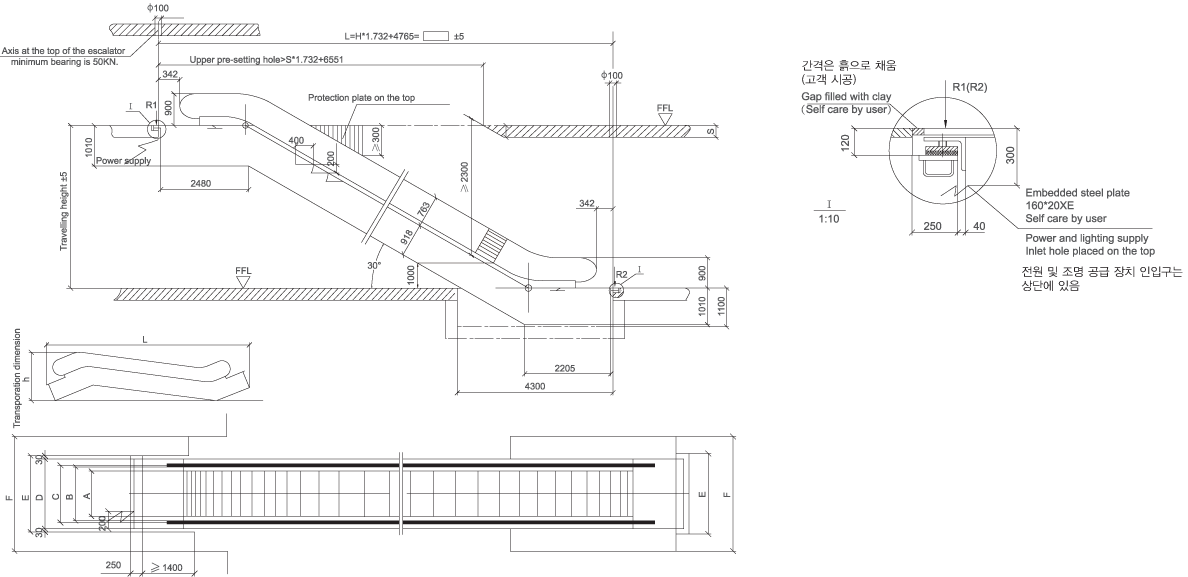

  • - When the escalator to be installed adove the second floor. Don’t have a pit. Layout drawing must be matched between up and down.
  • - Keep the sufficient space at both EXIT and EXTRANCE of escalator. The width must be less than 1238. The depth from handrail belt revered end to the front obstacle must be not less than 2500.
  • - Space between handrail belt of escalator and obstacle must be not less than 500.
  • - Motor AC 380 V 50 HZ. See in the table
  • - By the user to provide a grounding resistance of less than 4 ohms.
  • - Provide by user to the main switch of the power requirements of 3 phases 5 wires.
  • - All the dimensions are measured by MM.
