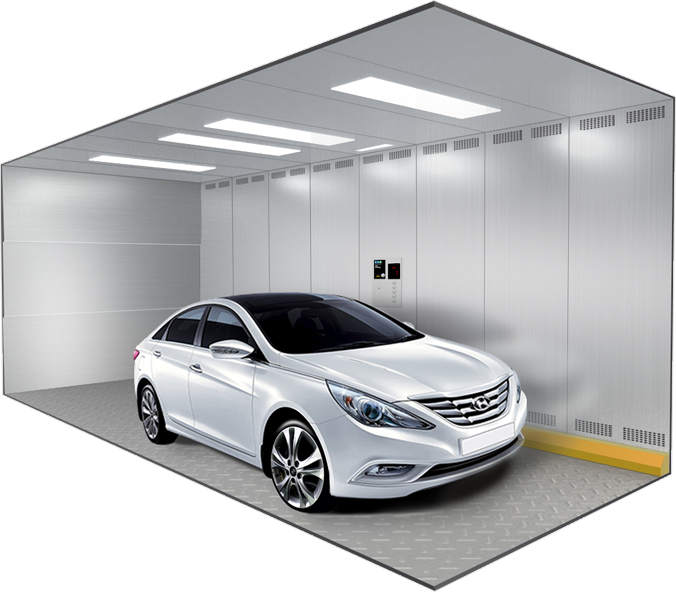

CAR ELEVATOR

It carries car for the purpose of car in/out parking lot.


Shin Han Elevator Co., Ltd. applies

vector-controlled VVVF frequency converter with high precision speed & current control. It implements an accurate real-time control to rotating torque of the hoist, ensures the smooth lift travel, reduces wear-ability of wire rope and provides the cars with the best comfort and supreme safety.

자동차용 엘리베이터 로프식

중량
Rated Load
(kg) 		도어 형식

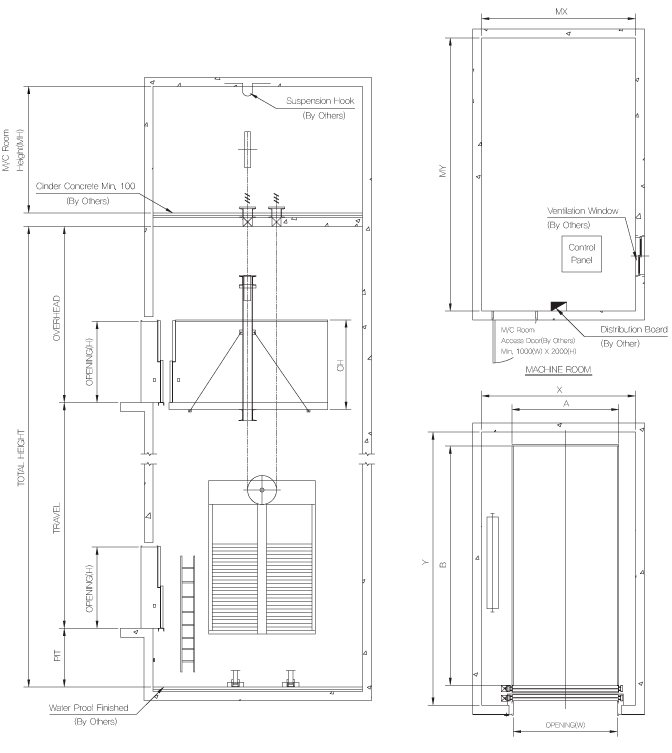

Door Type		 카 치수 Car dimension 출입구 Opening 승강로 (Hoistway)
A B CH W H X Y 최소층고
2000 2UP (일방) 2300 5300 1800 2300 1800 3400 5870 3550
2UP (관통) 2300 5300 1800 2300 1800 3400 6180 3550
3UP (일방) 2300 5300 1800 2300 1800 3400 6010 3250
3UP (관통) 2300 5300 1800 2300 1800 3400 6460 3250
2500 2UP (일방) 2600 6000 2000 2600 2000 3700 6570 3850
2UP (관통) 2600 6000 2000 2600 2000 3700 6880 3850
3UP (일방) 2600 6000 2000 2600 2000 3700 6710 3520
3UP (관통) 2600 6000 2000 2600 2000 3700 7160 3520
3000 2UP (일방) 2800 6400 2000 2800 2000 3900 6970 3850
2UP (관통) 2800 6400 2000 2800 2000 3900 7280 3850
3UP (일방) 2800 6400 2000 2800 2000 3900 7110 3520
3UP (관통) 2800 6400 2000 2800 2000 3900 7560 3520
3500 2UP (일방) 3000 6800 2000 3000 2000 4100 7370 3850
2UP (관통) 3000 6800 2000 3000 2000 4100 7680 3850
3UP (일방) 3000 6800 2000 3000 2000 4100 7510 3520
3UP (관통) 3000 6800 2000 3000 2000 4100 7960 3520
중량
Rated Load
(kg)		 기계실
Machine Room		 오버헤드/피트
Overhead / Pit		 모터 용량
(Kw)
MX MY MH 30 mpm
(Single Rail)		 45 mpm
(Single Rail)		 Double Rail 30 mpm 45 mpm
2000 3400 5870 2800 4400 / 1500 4000 / 1900 4300 / 1600 9.5 15
3400 6180 2800 4400 / 1500 4000 / 1900 4300 / 1600 9.5 15
3400 6010 2800 4400 / 1500 4000 / 1900 4300 / 1600 9.5 15
3400 6460 2800 4400 / 1500 4000 / 1900 4300 / 1600 9.5 15
2500 3700 6570 2800 4800 / 1500 4400 / 1900 4700 / 1600 11 19
3700 6880 2800 4800 / 1500 4400 / 1900 4700 / 1600 11 19
3700 6710 2800 4800 / 1500 4400 / 1900 4700 / 1600 11 19
3700 7160 2800 4800 / 1500 4400 / 1900 4700 / 1600 11 19
3000 3900 6970 2800 4400 /1400 4600 / 2000 5000 / 1600 15 19
3900 7280 2800 4400 /1400 4600 / 2000 5000 / 1600 15 19
3900 7110 2800 4200 / 1400 4600 / 2000 5000 / 1600 15 19
3900 7560 2800 4200 / 1400 4600 / 2000 5000 / 1600 15 19
3500 4100 7370 2800 4500 / 1500 4900 / 2100 5400 / 1600 15 22
4100 7680 2800 4500 / 1500 44900 / 2100 45400 / 1600 15 22
4100 7510 2800 4400 / 1500 4900 / 2100 5400 / 1600 15 22
4100 7960 2800 4400 / 1500 4900 / 2100 5400 / 1600 15 22
